LD Systems MS 828 8-Channel Splitter/Mixer
Maloprodajna cena - MPC
RSD21.960,00
Cena sa popustom za plaćanje odmah ili gotovinsko - GOT
RSD19.764,00
(sve cene su sa uračunatim PDVom)
Vreme isporuke: 7 do 10 dana
SKU: LDMS828
Načini plaćanja i dostava
Cene na našem sajtu variraju u odnosu na načine plaćanja. Cene na svakom proizvodu prikazane su na dva načina:
MPC – maloprodajna cena artikla
GOT – gotovinsko plaćanje (plaćanje gotovinom u maloprodaji, plaćanje karticom preko sajta odjednom, plaćanje pouzećem, plaćanje uplatnicom, plaćanje po predračunu)
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.
Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.
Opis proizvoda

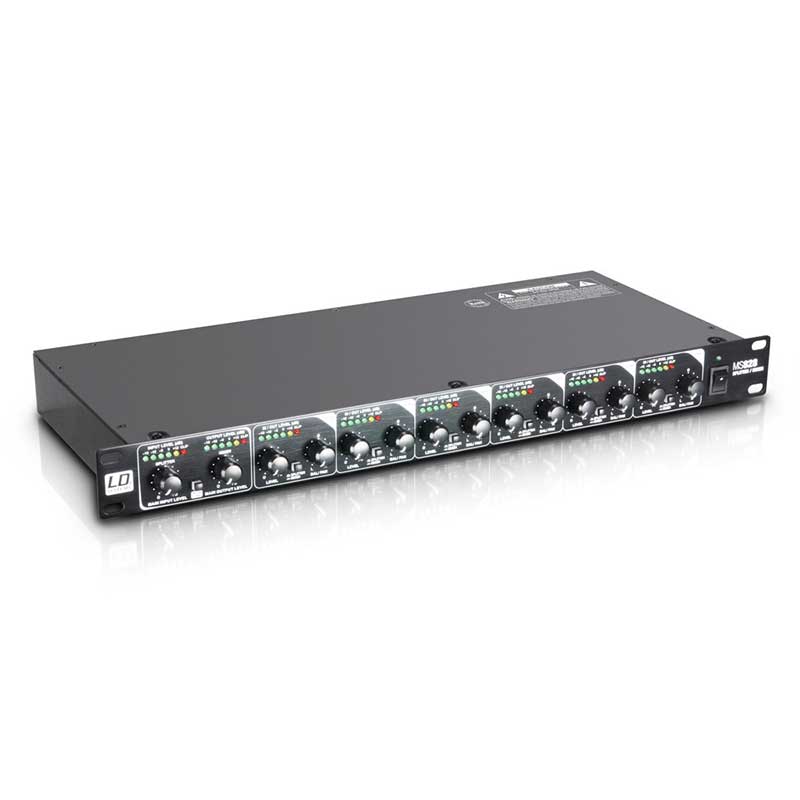

- LD Systems MS 828 8-Channel Splitter/Mixer
- and booster amplifier in 19” rack format for flexible live and studio applications.
has one stereo and six mono channels with individual LED level metres;
all inputs and outputs are electronically balanced.
Two mono channels are equipped with stereo TRS sockets,
the other connectors are XLR sockets.
The stereo channel has individual volume controls for input and output
and a link button for looping through the signal;
each mono channel has volume and panorama controls
as well as a button that toggles between the splitter and mixer functions.
by LD Systems is impressive not only because of its practical features,
but also because of its technical specifications.
The broad frequency response of 5 - 40,000 Hz,
a dynamic range of 85 dB, and the extremely
low total harmonic distortion of 0.0008% guarantee maximum signal fidelity.
The nominal working level of -10 dBV to +4 dBU makes the mixer/splitter suitable
for connection to both professional and consumer equipment.
Tehničke specifikacije proizvoda
- Product number: LDMS828
- Product type: Mixers
- Type: Installations
- Channels: 8
- Mono input channels, line: 6
- Mono line input connectors: 2 x 6.3 mm TS
- Mono line input type: electronically balanced
- Stereo Line Input Channels: 1
- Stereo Line Input Connectors: 2 x XLR
- Stereo Line Input Type: electronically balanced
- Input impedance: (balanced) 50000Ohm(s), (unbalanced) 25000Ohm(s)
- Max. input level: + 21dBu
- Nominal working level: -10 dBV - +4 dBu
- Mono output channels: 6
- Mono output connectors: 2 x 6.3 mm TS
- Mono output type: electronically balanced
- Stereo output channels: 1
- Stereo output connectors: 1 x XLR
- Stereo output type: electronically balanced
- Output impedance: (unbalanced) 30Ohm(s), (balanced) 60Ohm(s)
- Max. output level: +22dBu
- Frequency response: 5 - 40000Hz
- THD: 0.0008 %
- S/N Ratio: 85dB
- Controls: Main Output Level, Main Input Level, Power, Splitter/Mixer Channel 1-6, Main Link, Level Channel 1-6
- Indicators: In/Out Level Channel 1-6 (6 -segment), Power, Output Level Indicator (6-segment), Input Level LED Indicator (6-segment)
- Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
- Mains connector: IEC power connector
- Power consumption: 15W
- Fuse: T 315 mAL, AC 250V
- Width: 483mm
- Height: 44.5mm
- Depth: 216mm
- Weight: 3kg
- Accessories (included): Power cord
